High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.
Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC
To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.
High-precision electrical controlsThe PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.
Specifications
TECHNICAL SPECIFICATIONS
General
Unit (W x D x H) 434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H) 434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight 17.6kg
38.8lb
Packaging Dimensions (W x D x H) 548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight 20.4kg
45lb
Carton Color 2 Color
Cushion / Packing 4 Separate / SheetPanel Color SP / BKFront (Center) Panel AluminumSide cover SECC with 4 straight emboss
Side screw SP: Nickel / BK: Black
Rear Panel SECC t1.0mm
Chassis Material SECC t1.2mm
Bottom Layer Single
Volume Knob Aluminum
Input Selector Aluminum
Bass/Treble/Balance/ Phono Sel knobs Aluminum
Power button Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc) Mold (Source Direct,Analog Mode,MM/MC)
Foot ABS resin with rigid ribw/Hot stamp
(H : 20mm)
Heatsink for Power Amplifier Extruded Aluminum
Rated Output Power 70W + 70W(8ohm,20Hz-20kHz,THD0.07%)140W + 140W(4ohm, 1kHz, THD0.7%)
Speaker Impedance A or B : 4 ~ 16ohmA + B : 8 ~ 16ohm
Frequency Response 5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion 0.01 % (Rated output: –3 dB),8 ohm/ohms, 1 kHz
Dumping Factor 100 and over
Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
MC: 200RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input MM : 130mV / 1kHzMC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio PHONO (MM): (89dB)PHONO (MC): (74dB)CD: (107dB)
Tone Control BASS : 100Hz ±8dBTREBLE : 10kHz ±8dB
Power Consumption 295Wat Standby 0.2W TV autoplay off
0.4W TV autoplay on
Audio Feature

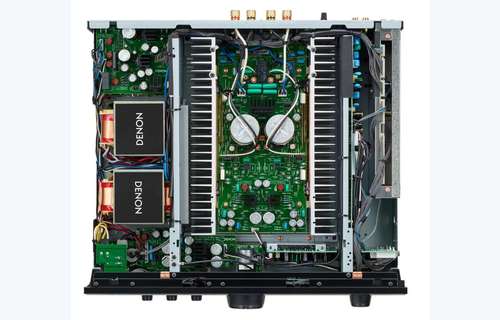

Power Amplifier Circuit New UHC-MOS
Single Push Pull (7)Power Trans Dual El Core
Pre Amplifier Circuit Variable Gain Preamplifier(OP AMP)
Volume Electric(MUSES 72323)Bass / Treble / Mid /
Balance Control Yes / Yes / No / Yes
Type of Tone Control Electric
Controlled by Potentiometer
Headphone Circuit Use Poweramplifier
Source Direct Yes
Analog Amp Mode Yes (button on front panel)
Other 70DAC Circuit PCM1795
Digital Filter Fixed
Digital Processing Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback) Yes
Asyncronous mode (for USB-B input) yes
Isolator (for USB-B input) Yes
Full Isolation
Connectivity
Phono Input Yes (MM / MC)*default=MM
Analog Input (include Phono) / REC Out (RCA) 4/1(PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct) Yes
(Ext.Pre)2 sets of Speaker Output Yes
(Bi-wiring)Speaker Terminal Gold Plated
Headphone Output 1(Turn off the speaker when inserting headphone)
Remote Control Bus Terminal Yes (mini)
AC Inlet Yes
Wi-Fi No
HEOS No
USB B (USB DAC) 1 (Rear)
Module or Main Device New XMOS(XU210-256-TQ128 )
PCM Sample Rate ~384kHz/32bit
DSD Audio Streaming (DoP) ~11.2MHz
Roon Certificaton Yes(Roon Tested)TBD
Control
Remote Controller System Remote(w/CD Player Control)Unit control (Button) Push Switch: 1POWER
Tact Switch : 3ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob) 5VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCELED POWER: 1 Red / GreenANALOG MODE: 1 GreenSOURCE DIRECT: 1 GreenMM / MC :1 Green
Front Panel Display Yes(OLED 128 x 100 dot)
MXS4036-A
Display Language Alphabetical
Dimmer for Front Display Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus) Yes
TV Auto-play (Opt/Coax digital-in detecter) Yes
Last Function Memory Yes
Auto Standby Mode Yes
Owner's Manual Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)JP: (Japanese)
PaperJP: (Japanese)Quick Start Guide Paper
E2: (English, German, French, Italian, Dutch, Spanish,Swedish, Polish, Russian)
E3: (English, French, Spanish)E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller Yes
Battery Yes (AAA x2)
Power Cord Yes
